| test space W x D x H [mm] | 900 x 900 x 1000 |
| door cutout W x H [mm] | 795 x 790 |
| Number of doors with 1 windscreen wiper | 1 |
| Size of viewing window W x H [mm] | 630x 690 |
| External dimensions W x D x H [mm] | 1350 x 920 x 2300 (depth without HMI/height without exhaust fan) |
| Chamber Lighting | Yes / LED |
| position perating panel | right |
| painting | Cover plates: RAL 7035 (light gray) |
| stainless steel surfaces | Polished finish |
| weight [kg] | 500 |

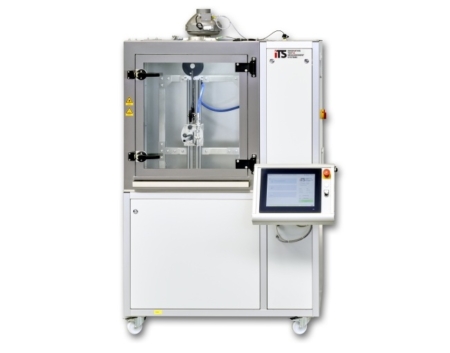

DWT 500
Our high-pressure water jet chambers comply with the following national and international standards:
- ISO 16925:2014
- DBL 5416
- VW PV 1503
- Ford BO 160-04
- Volvo STD 423-0015
- BMW AA-0136
With our high-pressure water jet chambers, we offer you a fully automatic testing system for your coating materials or for checking coated components.
In the standard version, the test nozzle can be positioned manually above the test specimen. For multiple test points on free-form surfaces, positioning can also be carried out by a robot.
