The spray chambers of the SPK series comply with the following national and international standards:
IEC 60529:1989 + A1:1999 + A2:2013
ISO 20653
EN 60068-2-18
JIS D203
IEC 60598-1
LV 124
GS 95003-4
NEMA 250
The SPK series splash chambers can be individually configured from a modular system to meet your specific requirements. All of the following options can be implemented in a single chamber. Options can also be installed in chambers that have already been purchased at a later date. The iTS spray chamber grows with your requirements.
| IP X1 | Dripping water | Option |
| IP X2 | Dripping water with 15° | Option |
| IP X3 | Spray water | Standard scope |
| IP X4 | Splashing water | Standard scope |
| IP X4K | Splashing water with increased pressure | Option |
| IP X5 | Water jets | Option |
| IP X6 | Strong water jets | Option |
| IP X6K | Water jets with increased pressure | Option |
| IP X9K | High-pressure water test | Option |
| JIS D203 R1/R2 und S1/S2 | Rain test / Spray test | Option |
| NEMA 4X / UL50E | Water jets / Rain test | Option / on request |
| SAE 575 | Spray test | Option |
| Test chamber W x D x H [mm] | 960 x 960 x 900 |
| Door cutout W x H [mm] | 800 x 750 |
| Number of doors with 1 windscreen wiper | 2 across the corner / front + left |
| Viewing window size W x H [mm] | 630 x 690 |
| External width [mm] | 1200 – (+ 2300 mm additional tunnel for IPX5/6) |
| External depth [mm] | 1000 – (+ 500 mm with IPX9K) |
| External height [mm] | 2100 |
| Turntable diameter [mm] | 300 |
| Max. load capacity of turntable [kg] | 20 |
| Test chamber lighting | Ja / LED |
| Walk-in grate in test chamber | – |
| Position of control panel | Right Side |
| Paint finish | Cover Sheets: RAL 7035- |
| Stainless steel surfaces | polished finish |
| Weight [kg] | 500 kg |

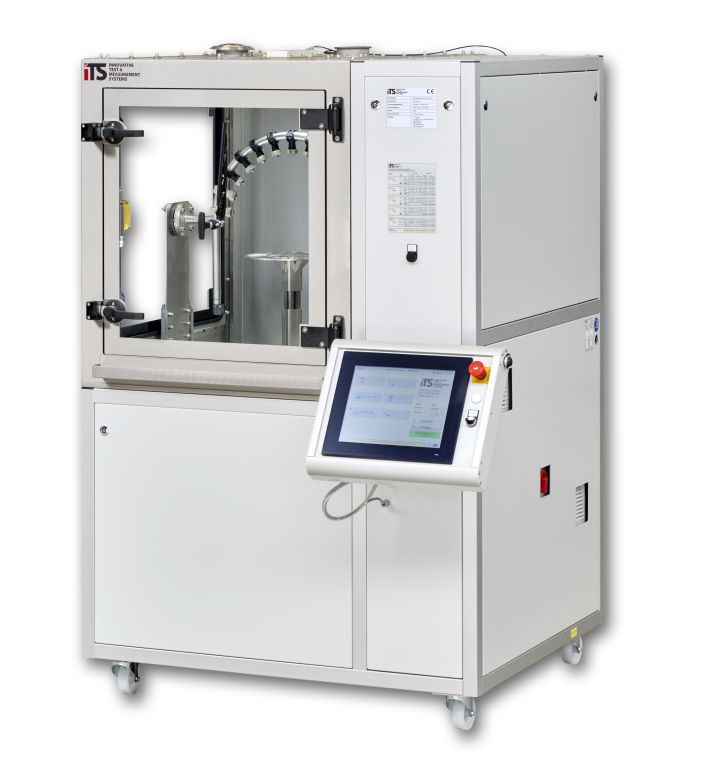

SPK R400You need to load content from reCAPTCHA to submit the form. Please note that doing so will share data with third-party providers.
