| Test chamber dimensions (W x D x H) [mm] | 2000 x 1000 x 1500 |
| Door opening W x H [mm] | 1920 x 1420 |
| Number of doors with 1 windshield wiper | 2 - Side by side without a center mullion (swing doors) |
| Viewing window size W x H [mm] | 580 x 1280 |
| External dimensions W x D x H [mm] | 2240 x 1850 x 1480 |
| Chamber weight [kg] | 850 |
| Number of dust blowers | 2 |
| Number of vacuum devices | 1 |
| Test room lighting | Yes / LED |
| Cable entry [number / diameter mm] | 2 / 100 |
| Load capacity test grid [kg] | 100 |
| Control panel position | exclusive links |

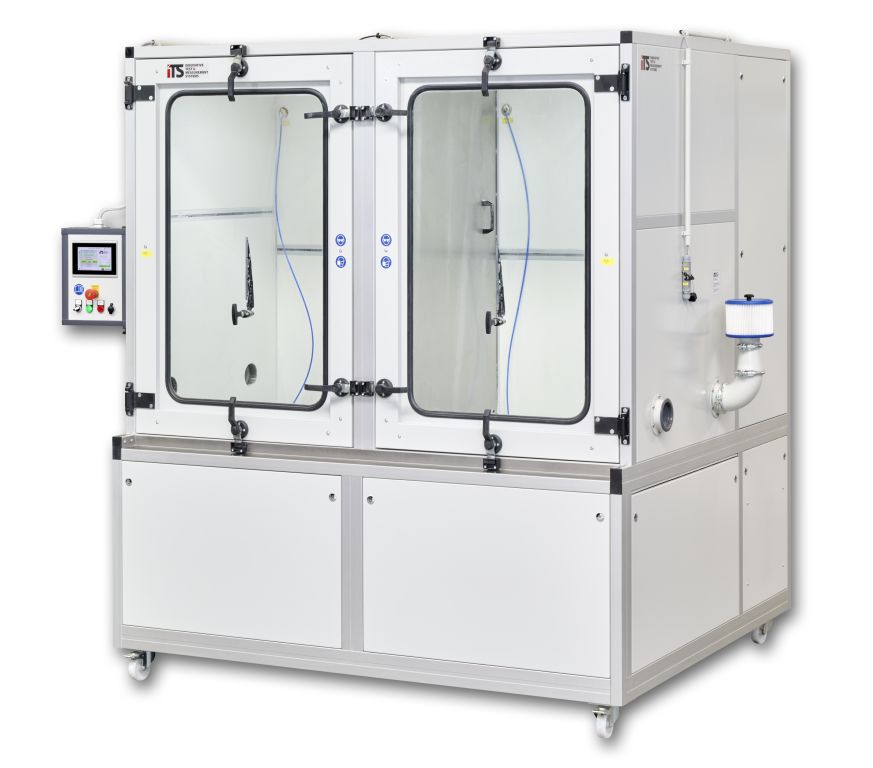

Dust chamber SK 2000Q-H
The SK series dust chambers meet the following national and international standards:
- IEC 60529:1989 + A1:1999 + A2:2013
- ISO 20653
- EN 60068-2-18
- JIS 207D
- IEC 60598-1
- L.V. 124
- GS 95003-4
- MIL STD 810G (Special Cabin)
The SK series dust test chambers offer a fully automated solution for conducting dust exposure tests. The vacuum system for tests according to DIN EN 60529 is fully automated. The chamber regulates the vacuum to 20 mbar and automatically determines the test duration.
