| Internal test chamber W x D x H [mm] | 2600 x 3600 x 2000 |
| Door cut-out W x H [mm] | 2400 x 1900 |
| Number of doors | 2 |
| Size viewing window W x H [mm] | 710 x 680 |
| External test chamber W x D x H [mm] | 3800 x 3700 x 2500 |
| Weight [kg] | 3000 |
| Number of dust blowers | 6 |
| Number of vacuum devices | 1 |
| Test chamber lighting | Yes / LED |
| Cable entry port [number/ø mm] | after agreement |
| Load capacity test grid [kg] | max. 1000 (weigt distribution 500kg/m²) |
| Position of control panel | left |

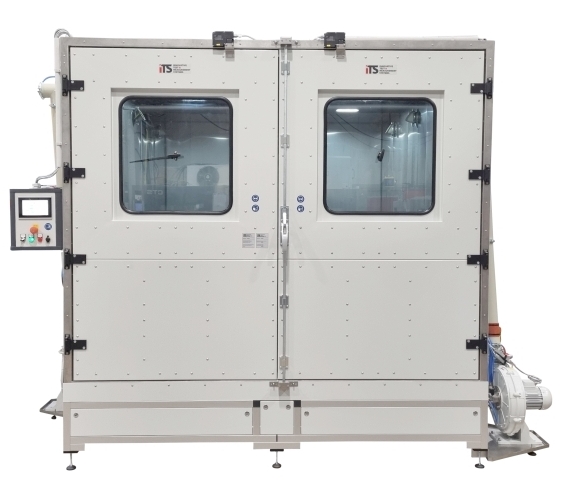

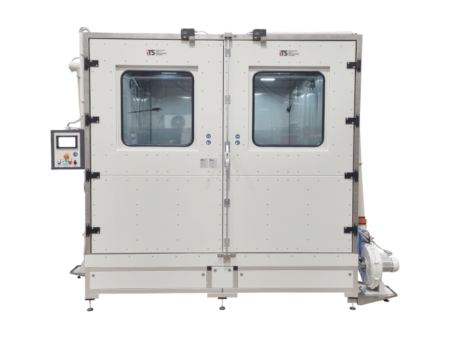

dust chamber SK-XL 260/360/200
The dust chambers of the SK series comply with the following national and international standards:
- IEC 60529:1989 + A1:1999 + A2:2013
- ISO 20653
- EN 60068-2-18
- JIS 207D
- IEC 60598-1
- LV 124
- GS 95003-4
- MIL STD 810G (special cabin)
The SK series dust test chambers offer a fully automatic solution for testing against the effects of dust. The negative pressure device for tests according to DIN EN 60529 is fully automatic. The chamber regulates the negative pressure to 20 mbar and automatically determines the test duration.
